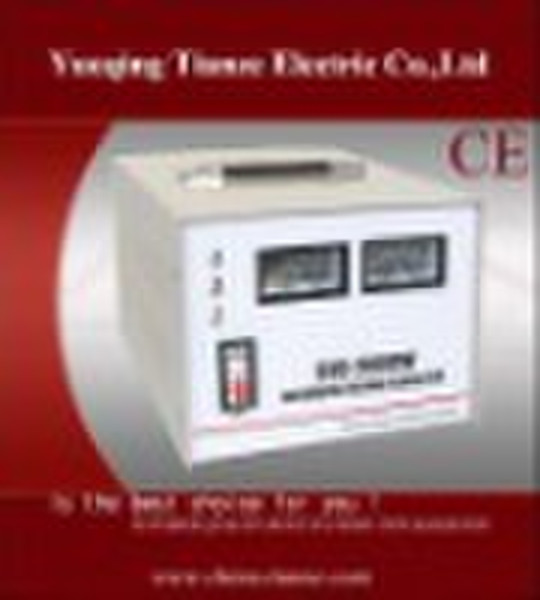

SVC voltage regulator

SVC voltage regulator consists of contact voltage regulator,sampling control circuit and servo motor.When input voltage or load changes,sampling control circuit will sample and amplify the voltage,and the servo motor will rotate in the desired direction,which turns the arm,adjusting voltage until the output voltage is regulated into the rated output voltage. The products is of small size,light weight,less output waveform distortion and reliable performance.To guarantee its quality,foreign advanced technology and main parts are introduced and imported.It is widelyused in electrical appliances which need constant voltage power supply,and in fields of industry producing,scientific research and medical hygiene. The product itself consumes little and can be continuously used for a long time. Input Voltage 160V 250V 70V 130V Output Voltage 220±3% with 110V±3% Phase Single Phase Frequency 50/60 Hz Response time within 1 sec.against 10% input voltage deviation Efficiency Better than 90% Ambient temperature 5 oC +40 0C Relative Humidity Less than 95% Waveform distortion Non-lack fidelity in waveform
